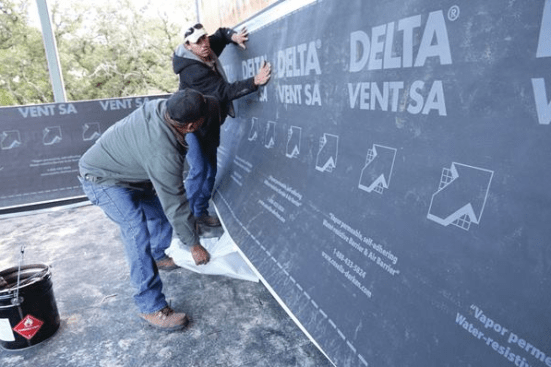

Delta-Vent SA peel-and-stick membrane air-seals walls as well as protecting them from moisture. It should be used with a rainscreen.
I’ve been very impressed with a German peel-and-stick product, Delta-Vent SA that we recently used on a house. There is a fair amount of labor involved in the installation: The sheathing is first covered with a paint-on primer. Then the 3-foot-wide material is unrolled on the wall; once it’s in position, you pull off the backing paper and smooth it into place. A double-stick layer at the edges creates an airtight seal at all the overlapping seams. There are also proprietary tapes for flashing windows and wall openings.
Another peel-and-stick product we’ve used is Aluma Flash—a laminated rubberized-asphalt product. The rubberized-asphalt layer is 40 mils thick and laminated to two layers of polyethylene film, with a top protective layer of aluminum. The aluminum outer layer helps this product withstand UV rays almost indefinitely. It’s applied similarly to Delta-Vent SA.
Matt Risinger

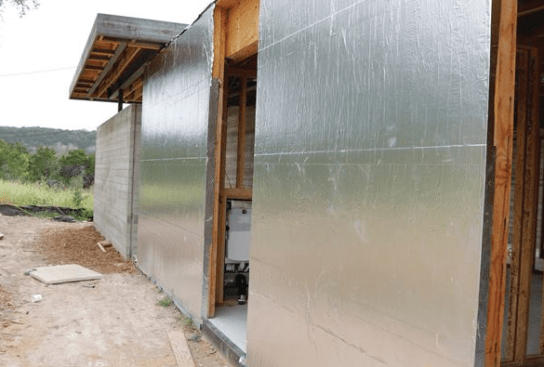

Its aluminum outer layer helps peel-and-stick Aluma Flash withstand UV rays almost indefinitely.
We have also used fluid-applied flashing and seam-sealing products from Tyvek. They work extremely well for tricky inset window installations. You squirt them on from a caulking gun, then use a trowel or brush to spread the materials, which have the consistency of thick paint. Once cured, they form a rubbery, airtight and watertight bond.
We have not yet used any fluid-applied products to completely cover the walls of a house, but some of the products that look promising are Tremco’s ExoAir 230, Tyvek Fluid Applied WB, and Grace’s Perm-A-Barrier Liquid.
Fluid-applied weather barriers are elastomeric products that can be sprayed, rolled, and even brushed on a wall. Depending on the product, some joint and seam filling or priming may be needed first. The cured products form an elastic, airtight, vapor-permeable, and waterproof covering that will stretch and contract a bit as a building moves.
Residential-grade fluid-applied products are thinner, however, than commercial-grade products, which range in thickness from 30 to 75 mils. At that thickness, the material is almost squishy when cured and provides something of a gasketing effect around fasteners for brick ties and the like. My current preference at this point would be to specify one of the commercial products.
